Details
Additional Information
- Serie: Classic
- Magnification [x]: 3
- Minimum magnification[x]: 3
- Maximum magnification[x]: 12
- Objective lens diameter [mm]: 56
- Reticle: 4A
- Illuminated reticle: Yes
- Angular field of view [° degrees]: 6.5 - 1.6
- Linear field of view at 100 m [m]: 11.4 - 2.8
- Exit pupil [mm]: 16.6 - 4.67
- Eye relief [mm]: 100
- Weight [g]: 670
- Length [mm]: 350

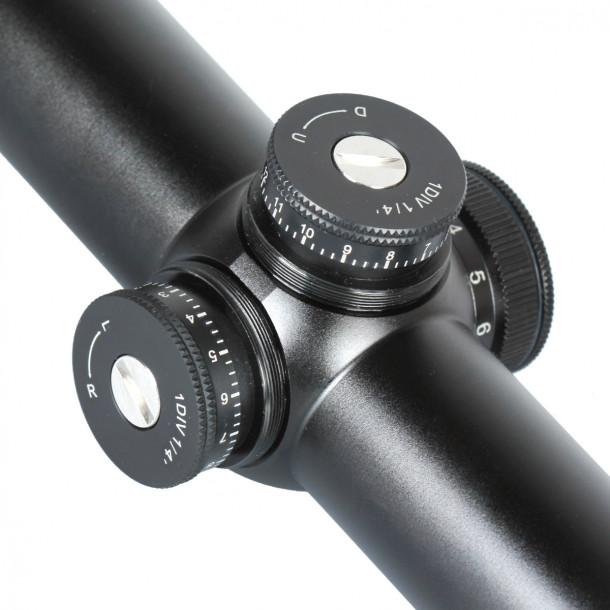

- One click: 1/4 MOA
- Max. elevation / windage adjustment range : 60/60 MOA
- Tube: 30 mm
- Shock resistance [J]: 3600
- Parallax adjustment: No
- Diopter adjustment range: 2
- Reticle position: Second focal plane(SFP)
- Nitrogen filling: Yes
